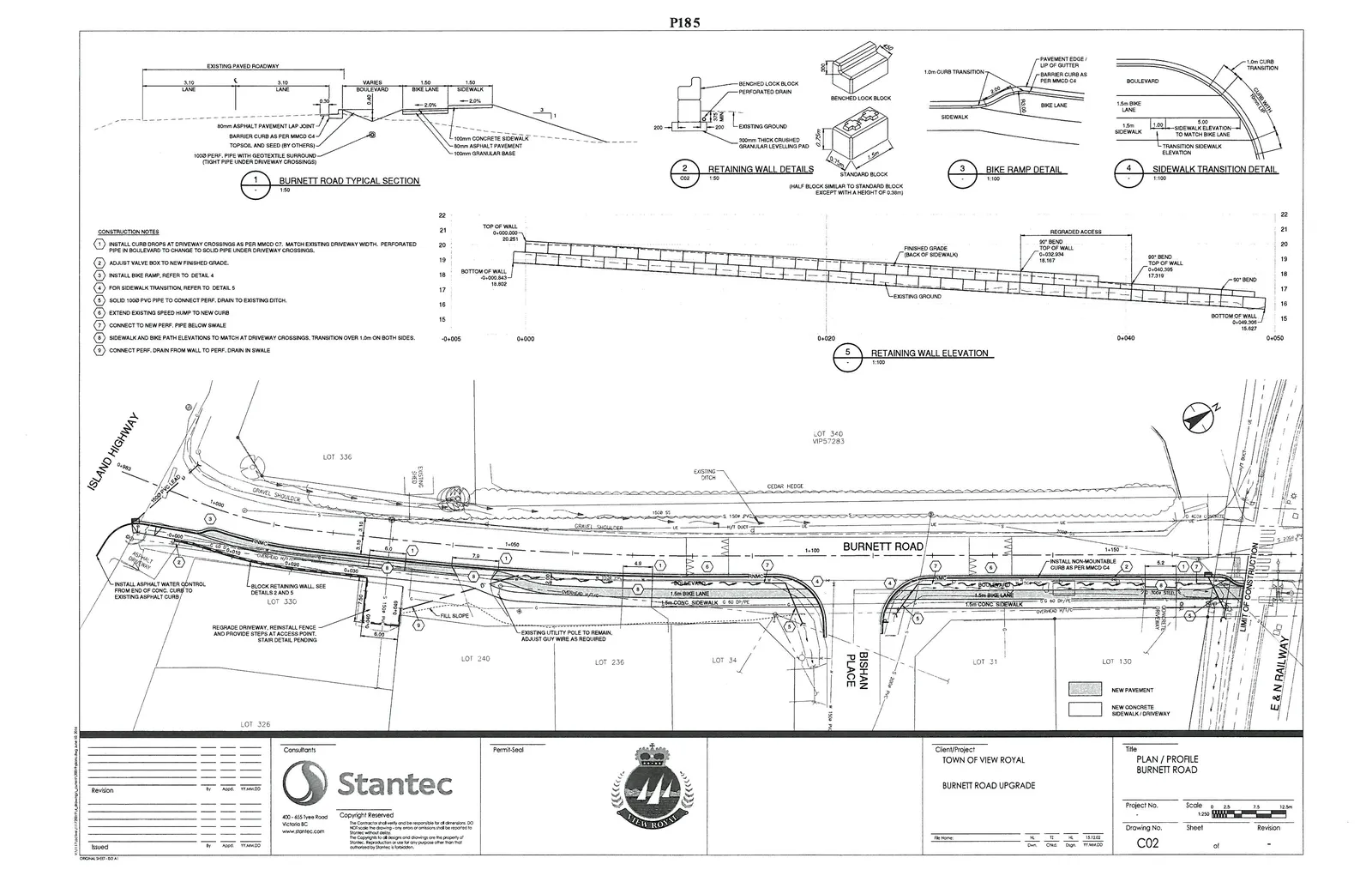

Plan/Profile - Burnett Road Upgrade (Stantec)

BURNETT ROAD TYPICAL SECTION (Detail 1)

• 3.10 LANE (x2)
• VARIES BOULEVARD
• 1.50 BIKE LANE (2.0% slope)
• 1.50 SIDEWALK (2.0% slope)
• 80mm ASPHALT PAVEMENT LAP JOINT
• BARRIER CURB AS PER MMCD C4
• TOPSOIL AND SEED (BY OTHERS)
• 100Ø PERF. PIPE WITH GEOTEXTILE SURROUND (TIGHT PIPE UNDER DRIVEWAY CROSSINGS)
• 100mm CONCRETE SIDEWALK
• 50mm ASPHALT PAVEMENT
• 150mm GRANULAR BASE

RETAINING WALL DETAILS (Detail 2)

• BENCHED LOCK BLOCK
• PERFORATED DRAIN
• EXISTING GROUND
• 300mm THICK CRUSHED GRANULAR LEVELLING PAD
• STANDARD BLOCK
• (HALF BLOCK SIMILAR TO STANDARD BLOCK EXCEPT WITH A HEIGHT OF 0.38m)

BIKE RAMP DETAIL (Detail 3)

• 1.0m CURB TRANSITION
• PAVEMENT EDGE / LIP OF GUTTER
• BARRIER CURB AS PER MMCD C4
• SIDEWALK
• BIKE LANE

SIDEWALK TRANSITION DETAIL (Detail 4)

• BOULEVARD
• 1.5m BIKE LANE
• 1.5m SIDEWALK
• SIDEWALK ELEVATION TO MATCH BIKE LANE
• TRANSITION SIDEWALK ELEVATION
• 1.0m CURB TRANSITION

CONSTRUCTION NOTES

1. INSTALL CURB DROPS AT DRIVEWAY CROSSINGS AS PER MMCD C7. MATCH EXISTING DRIVEWAY WIDTH. PERFORATED PIPE IN BOULEVARD TO CHANGE TO SOLID PIPE UNDER DRIVEWAY CROSSINGS.
2. ADJUST VALVE BOX TO NEW FINISHED GRADE.
3. INSTALL BIKE RAMP, REFER TO DETAIL 4.
4. FOR SIDEWALK TRANSITION, REFER TO DETAIL 5.
5. SOLID 150Ø PVC PIPE TO CONNECT PERF. DRAIN TO EXISTING DITCH.
6. EXTEND EXISTING SPEED HUMP TO NEW CURB.
7. CONNECT TO NEW PERF. PIPE BELOW SWALE.
8. SIDEWALK AND BIKE PATH ELEVATIONS TO MATCH AT DRIVEWAY CROSSINGS. TRANSITION OVER 1.0m ON BOTH SIDES.
9. CONNECT PERF. DRAIN FROM WALL TO PERF. DRAIN IN SWALE.

RETAINING WALL ELEVATION (Detail 5)

• TOP OF WALL
  • Station 0+000.000: Elevation 20.251
  • 90° BEND Station 0+032.934: Elevation 18.167
  • 90° BEND Station 0+040.305: Elevation 17.510
• BOTTOM OF WALL
  • Station 0+000.543: Elevation 18.802
  • Station 0+049.300: Elevation 15.627
• Station markers: -0+005, 0+000, 0+020, 0+040, 0+050

PLAN VIEW: BURNETT ROAD

• Streets & Landmarks: ISLAND HIGHWAY, BURNETT ROAD, BISHAN PLACE, E & N RAILWAY.
• Property Lots: LOT 326, LOT 336, LOT 240, LOT 236, LOT 34, LOT 340 VP57283, LOT 31, LOT 130.
• Key Features & Callouts:
  • GRAVEL SHOULDER
  • EXISTING UTILITY POLE TO REMAIN, ADJUST GUY WIRE AS REQUIRED
  • EXISTING DITCH
  • CEDAR HEDGE
  • 1.5m BIKE LANE / 1.5m CONC. SIDEWALK
  • REGRADE DRIVEWAY, REINSTALL FENCE AND PROVIDE STEPS AT ACCESS POINT. STAIR DETAIL PENDING.
  • BLOCK RETAINING WALL, SEE DETAILS 2 AND 5.
  • INSTALL ASPHALT WATER CONTROL FROM END OF CONC. CURB TO EXISTING ASPHALT CURB.
  • INSTALL NON-MOUNTABLE CURB AS PER MMCD C4.
  • OVERHEAD HYDRO / TEL.
  • LIMIT OF CONSTRUCTION.
• Legend:
  • NEW PAVEMENT (solid grey)
  • NEW CONCRETE SIDEWALK / DRIVEWAY (stippled)
